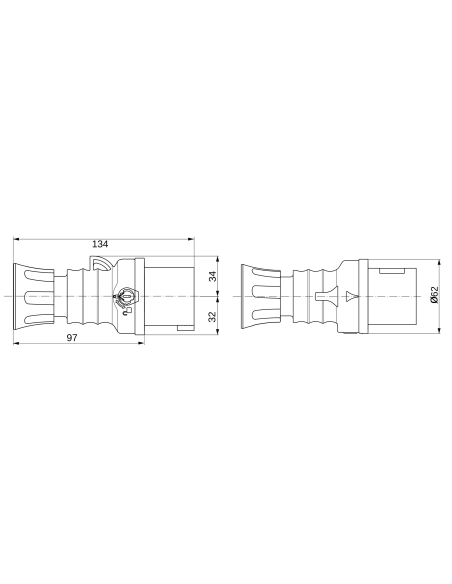

STRAIGHT PLUG HP - IP44/IP54 - 3P+E 16A 480-500V 50/60HZ - BLACK - 7H - SCREW WIRING
  • Uus
STRAIGHT PLUG HP - IP44/IP54 - 3P+E 16A 480-500V 50/60HZ - BLACK - 7H - SCREW WIRING

STRAIGHT PLUG HP - IP44/IP54 - 3P+E 16A 480-500V 50/60HZ - BLACK - 7H - SCREW WIRING

GW60010H
Tarnija laost
0,00 €
Maksudega Tarnija laost


IEC 309 HP range Plugs and socket-outlets IEC 309 Standards - The IEC 309 HP system comprises plugs and socket-outlets from 16 to 125A in two different versions – straight mobile and 10° flush-mounting – available in protected versions with IP44/IP54 degree of protection and watertight versions with IP degree of protection of up to IP66/IP67/IP68/IP69 (the first and only on the electro-technical scene to have this). The introduction of all the clock references for the earthing contact completes the range for specific applications and installations. The 16-32A versions require screw or quick spring wiring, while the 63-125 A versions employ branching terminal connection technology.
Colour
Black
IP degree
IP44/IP54
Mechanical resistance
IK09
Rated voltage
480 - 500 V
Frequency
50/60 Hz
Cable clamp tightening capacity
7.5-13.8 mm
Type of wiring
With screw
Electrocod
2230
Total number of operations
> 5000
Breaking capacity at 1.1 Un
20 A
Thermo-pressure with ball
125 °C (active parts) - 80 °C (passive parts)
Rated current (A)
16
No. of poles
3P+E
Reference h
7
Type
Straight plug
Terminal tightening capacity
1-2.5mm² flexible cables - 1.5-4mm² rigid cables
Operating temperature
-25 +55 °C
Type of material
Halogen-free in compliance with EN 60754-2
Glow wire test
850 °C (active parts) - 650 °C (passive parts)
Permissible overload
22 A
Insulation resistance
> 10 MΩ
GEWISS
